原料包自動卸料機

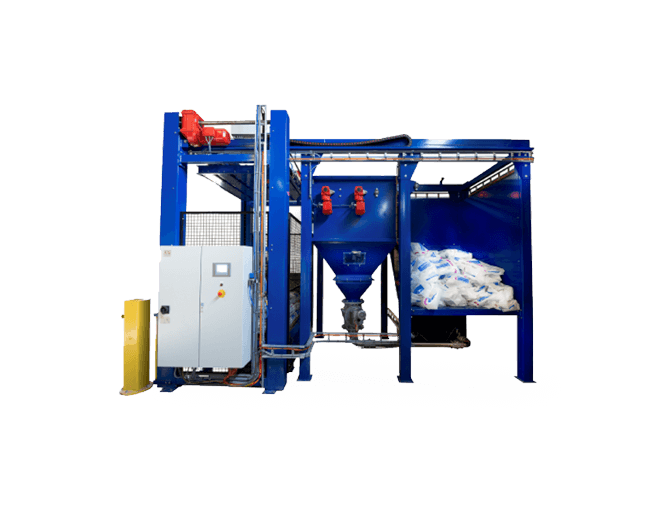

tw-bag-emptying-machine-1 tw-bag-emptying-machine-2

產品特色

  • Expandability: possibility to
    - Add a bag compacter
    - Add a pallet stacker
    - Implement in complex control system with full process control
  • Flexibility (additional options, executions can be discussed)
  • Robust execution
  • Separated steady movements
    - Electrical lift executes vertical movement
    - Shuttle executes horizontal movements

產品描述

  • With the fully automatic bag emptying machine, granulate bags of 25 kg can be opened and emptied into a receiving bin.
  • The capacity of the machine is between 10 and 15 tons of granules per hour.
  • Emptying is better than 99.98%!
  • It is also possible to transport or drop the empty bags (in)to a bag compactor or baler.
  • The granulate in the receiving bin is transported from the bin by means of a granulate pump into the pneumatic transport system.
  • This system provides a durable and reliable transport to storage silos.

客製化設計 & 多元化的選擇

  • XL unit: Suitable for dumping granulate into containers, big bags, octabins or truckloads;
  • Automated cleaning: This machine can clean itself after a batch, so it is immediately ready for a different product
  • Automatic pallet transport (in and out)
  • Integrated palletstacker for stacking the empty pallets
  • Integrated bag compactor or baler for the empty bags

產品規格

  • Pallet dimensions: 1300mm x 1100mm (to be confirmed by customer)
  • Max. intake width: approx. 1400 mm
  • Pallet weight: approx. 1600 kg
  • Pallet height: max. 2200 mm (to be confirmed by customer)
  • Stacking: 5 bags per layer, stacked 3 by 2 in alternating directions, 11 layers
  • Capacity: approx. 15t/h (granulate) with >99,98% discharge
  • Supply voltage: 3x 400V, 50Hz + earth
  • Protection rating: IP55
  • Control voltage: 24 VDC
  • Air consumption:10 Normal-liter / cycle
  • Air conditioning: 6 bar dry conditioned air
  • Finishing: Frame: powder coated in RAL color
  • Total Load: 6.85 KW
