原料包自動卸料機+空袋壓縮打包機

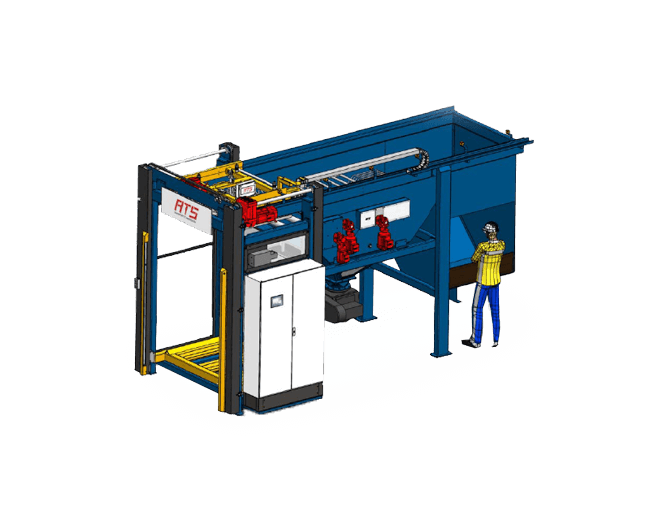

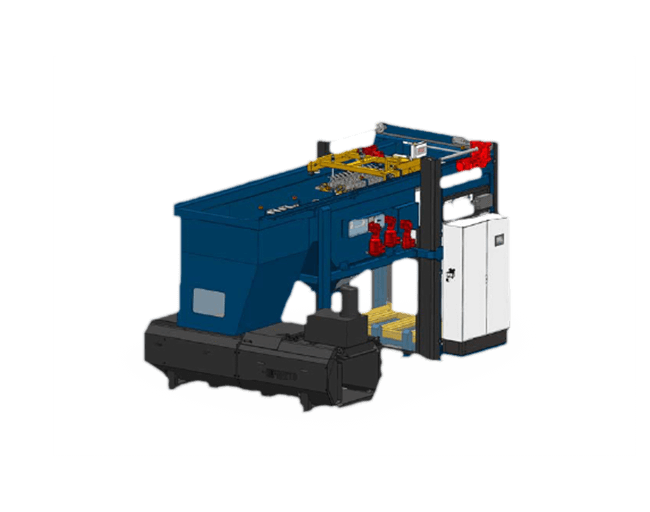

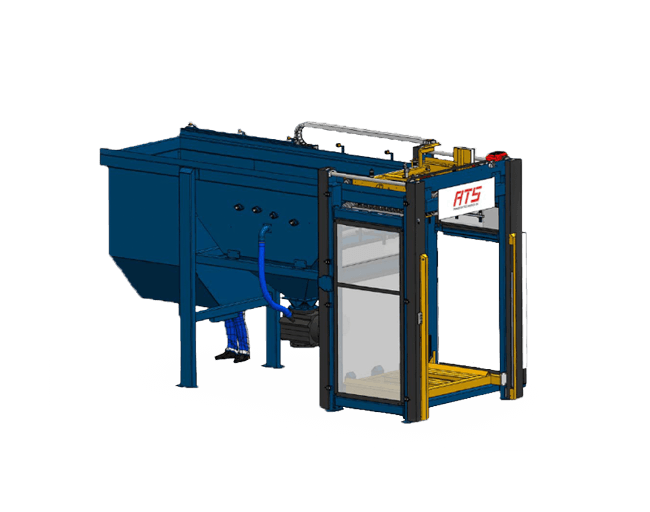

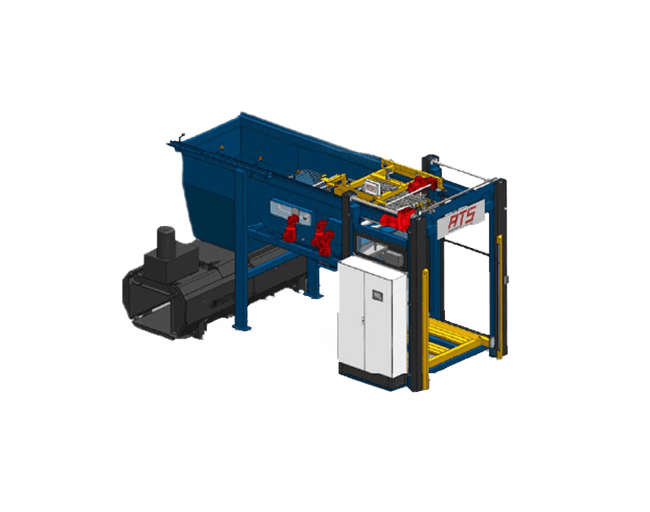

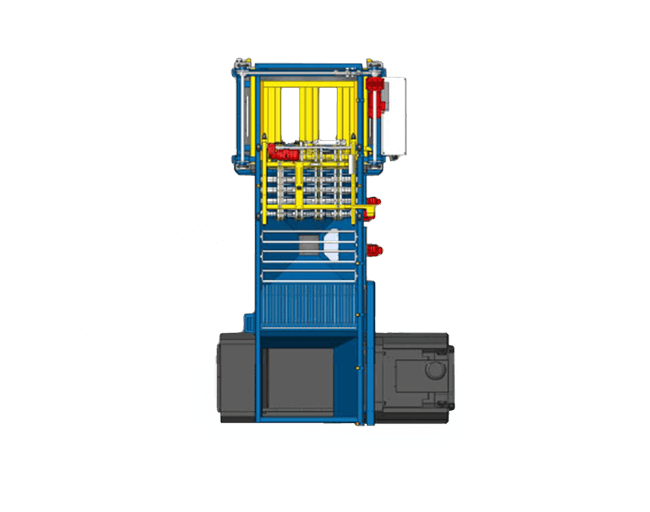

tw-bag-machine-with-bale-press-04 tw-bag-machine-with-bale-press-02 tw-bag-machine-with-bale-press-03 tw-bag-machine-with-bale-press-05 tw-bag-machine-with-bale-press-06

產品特色

  • Expandability: possibility to
    - Add a bag compacter

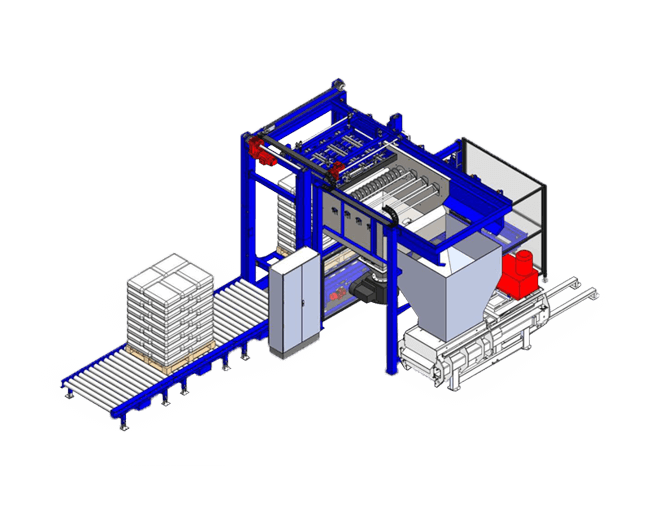

    - Add a pallet stacker
    - Implement in complex control system with full process control
  • Flexibility (additional options, executions can be discussed)
  • Robust execution
  • Separated steady movements
    - Electrical lift executes vertical movement
    - Shuttle executes horizontal movements

產品描述

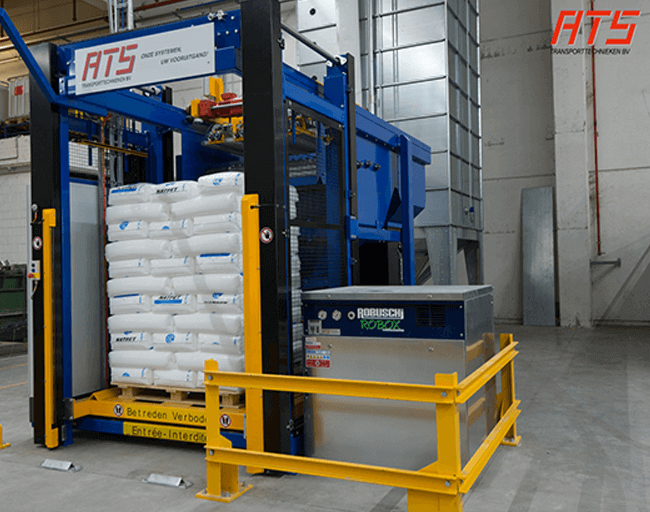

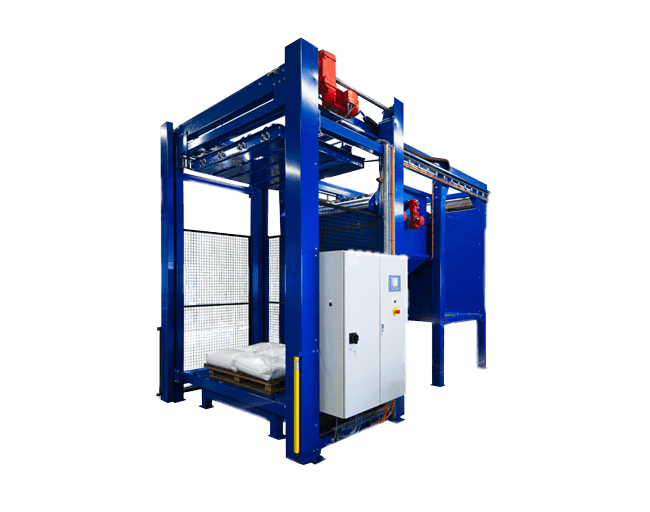

  • With the fully automatic bag emptying machine, granulate bags of 25 kg can be opened and emptied into a receiving bin.
  • The capacity of the machine is between 10 and 15 tons of granules per hour.
  • Emptying is better than 99.98%!
  • It is also possible to transport or drop the empty bags (in)to a bag compactor or baler.
  • The granulate in the receiving bin is transported from the bin by means of a granulate pump into the pneumatic transport system.
  • This system provides a durable and reliable transport to storage silos.

客製化設計 & 多元化的選擇

  • XL unit: Suitable for dumping granulate into containers, big bags, octabins or truckloads;
  • Automated cleaning: This machine can clean itself after a batch, so it is immediately ready for a different product
  • Automatic pallet transport (in and out)
  • Integrated palletstacker for stacking the empty pallets
  • Integrated bag compactor or baler for the empty bags

產品規格

  • Feeding opening L x W: 1030x950 mm
  • Channel W x H: 950 x 700 mm
  • Dimensions L x W x H: 3550 x 1410 x 1940 mm; without hopper
  • Max. feeding volume: 0,68 m³
  • Volume throughout in idle speed: 72 m³/h without binding time
  • Pressing force: 300 KN; specific pressing force: 45 N/cm²
  • Cycle time: 34 s
  • Drive power uptake: 11 KW; fuse: 35 A; delay melting fuse
  • Power connection: 460 V, 60 Hz
  • Channel outlet fully automatic control
  • Binding system: manual, 4-fold; binding with polyester strap reels
  • Low oil level switch with over temperature stop function
  • Equipped with Operating hour meter and Bale length meter
  • Starting system by light barrier
  • Hydraulic central drive
  • Central control system with function and failure display by Siemens PLC control
  • Bale length pre-selection via text display
  • Revision door (670x670mm) with Plexiglass
  • Total Load: 11 KW
