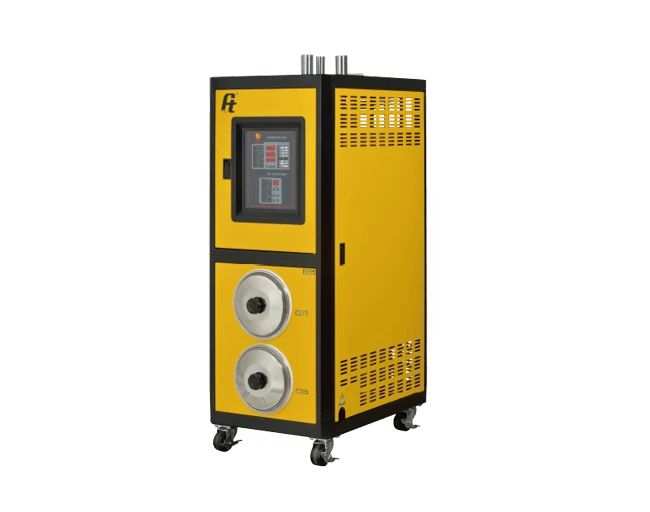

Honeycomb Dehumidifying Dryer

Dew-point keeps below -40℃ & stable during the long-term operation.

Inquiry

FEATURE

Seibu Giken honeycomb for best dew point performance.

Dew Point guarantee -40 for standard machine, can be customize to -60 or lower.

Microprocessor control panel, can be change to PLC & touch screen for industry 4.0.

Specifications

Download Catalog

Model			KRD-25	KRD-50	KRD-100	KRD-200	KRD-300
Air flow	CMH		25	50	100	200	300
Drying blower	60 HZ	KW	0.20	0.50	0.85	1.90	2.60
Drying blower	50 HZ	KW	0.18	0.40	0.75	1.75	2.20
Regenerative blower	60 HZ	KW	0.20	0.20	0.50	0.50	0.85
Regenerative blower	50 HZ	KW	0.18	0.18	0.40	0.40	0.75
Regenerative heater	KW		3.5	3.5	6.5	6.5	10.0
Connection piping	INCH		2.0	2.0	2.5	2.5	3.5
Regenerative airoutlet	INCH		1.5	1.5	2.5	2.5	3.5
Cooling water	INCH		1/2	1/2	3/4	3/4	1
	LPM		5	10	15	30	50
	KG/CM²		Over 1.0 - 1.5 KG/CM²
Total load	60 HZ	KW	3.9	4.2	7.9	8.9	13.5
Total load	50 HZ	KW	3.9	4.1	7.7	8.7	13.0
Dimension	W	CM	55	55	55	55	75
	D		80	80	100	100	115
	H		141	141	141	141	171
With pipeline	D+		86	86	106	106	121
With pipeline	H+		151	151	151	151	181
Approx. weight	KG		180	185	195	200	210
Options			1.Dew-point meter 2.Oil collector 3.Air flow indicator 4. Insulated & dust-free hopper dryer. 5. Silicone pipe and piping accessories.
Remarks			1. The model ≦ KRD-400, drying blower is designed with ring blower. 2. The model ≧ KRD-700, drying blower is designed with multi-stage turbo blower. 3. We reserve the right to change specifications without prior notice.

Model			KRD-400	KRD-700	KRD-1000	KRD-1400	KRD-2000
Air flow	CMH		400	700	1,000	1,400	2,000
Drying blower	60 HZ	KW	6.30	3.70	5.50	11.0	11.0
Drying blower	50 HZ	KW	5.50	3.70	5.50	11.0	11.0
Regenerative blower	60 HZ	KW	0.85	2.60	3.70	6.30	6.30
Regenerative blower	50 HZ	KW	0.75	2.20	3.40	5.50	5.50
Regenerative heater	KW		10.0	18.0	24.0	36.0	45.0
Connection piping	INCH		3.5	5.0	6.0	8.0	8.0
Regenerative airoutlet	INCH		3.5	3.5	3.5	5.0	5.0
Cooling water	INCH		1	1-1/4	1-1/2	2	2
	LPM		60	100	150	300	300
	KG/CM²		Over 1.0 - 1.5 KG/CM²
Total load	60 HZ	KW	17.2	24.3	33.2	53.3	62.3
Total load	50 HZ	KW	16.3	23.9	32.9	52.5	61.5
Dimension	W	CM	75	100	110	155	155
	D		115	180	200	255	285
	H		171	181	201	239	239
With pipeline	D+		121	186	206	261	291
With pipeline	H+		181	191	212	252	252
Approx. weight	KG		215	550	600	800	850
Options			1.Dew-point meter 2.Oil collector 3.Air flow indicator 4. Insulated & dust-free hopper dryer. 5. Silicone pipe and piping accessories.
Remarks			1. The model ≦ KRD-400, drying blower is designed with ring blower. 2. The model ≧ KRD-700, drying blower is designed with multi-stage turbo blower. 3. We reserve the right to change specifications without prior notice.

Material	Drying temp℃	Drying time HR	Drying capacity(KG/HR)
Material	Drying temp℃	Drying time HR	KRD-25	KRD-50	KRD-100	KRD-200	KRD-300	KRD-400	KRD-600	KRD-800	KRD-1000
ABS	80	2-3	19	38	63	126	189	252	377	503	629
IONOMER(SURLYN)	60	4-8	16	33	55	109	164	219	328	437	546
LCP	150	3-4	10	20	33	67	100	133	200	267	333
PA6/6.6/6.10/6.12	80	4-6	11	23	38	77	115	153	230	307	383
PA 11/12	80	4-5	9	18	30	61	91	121	182	242	303
PBT	140	3-4	9	19	31	62	93	123	185	247	309
PC	120	3	15	29	49	97	146	194	291	388	485
PC+ABS	100	3-4	15	31	52	103	155	206	309	412	515
PEEK	150	3	14	27	45	90	135	180	270	360	450
PEI	150	3-4	14	29	48	95	143	190	286	381	476
PES	160	4	11	23	38	77	115	153	230	307	383
PET	160	4-6	9	18	29	59	88	117	176	235	293
PETG	66	4-5	16	31	52	105	157	209	314	419	524
PI	120	2	16	31	52	105	157	209	314	419	524
PMMA	80	3	16	33	55	110	165	220	330	440	549
POM	100	2	16	32	54	108	162	216	324	432	541
PPO	110	2	14	28	46	93	139	185	278	370	463
PPS	140	3-4	14	28	46	93	139	185	278	370	463
PUS	120	3-4	16	33	55	109	164	219	328	437	546
PU	90	3-4	12	23	39	78	117	156	233	311	389
TPU	90	2-3	14	29	48	97	145	193	290	386	483
Remarks	1. How to choose suitable model? 　a. For the best choice, please refer to the ”drying capacity” under 60HZ frequency. 　b. For the best choice, please refer to the”80-85％ of” drying capacity” under 50Hz frequency. 2. The drying capacity shows the values in KG/HR at 200PPM residual moisture content under relative humidity 65％with ambient temp. of 20℃。
