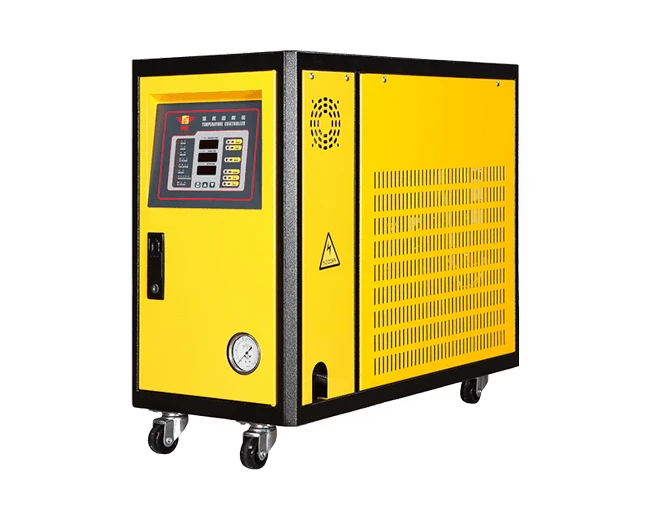

Water Temperature Controller

High temperature controller adopts stainless steel piping and indirect cooling design. The maximum temperature is 180℃.

Inquiry

FEATURE

PID temperature controller ensure the precision of temperature control within 0.5°C tolerance.

Controller can be upgrade to PLC control.

Applying direct and indirect cooling method to achieve high and stable temperature controlling by water.

Customize and standard pump design to provide the best flow and pressure rate.

Microprocessor controller monitors the operation status easily.
PID temperature controller to ensure the precision temperature within ± 0.5℃ tolerance.
Machine automatic venting, and automatic cooling after motor delay shutdown to protect the heater to ensure safety.
Temperature high low monitoring, more precise control of temperature setting.
High temperature controller adopts stainless steel piping and indirect cooling design. The maximum temperature is 180℃.

Comprehensive safety protection system

SPECIFICATIONS

Download Catalog

Model				KWTC-0506N KWTC-0506S			KWTC-1009N KWTC-1009S			KWTC-2012N KWTC-2012S			KWTC-3020N KWTC-3020S			KWTC-5030N KWTC-5030S			KWTC-7560N KWTC-7560S
Fluid				Water
Max. temperature		℃		120			120			120			120			120			120
Control method				PID Microprocessor controller ± 0.5℃ or upgrad to PLC program with 4.3 "color touch panel
Heater capacity			KW	6			9			12			20			30			60
Pump	Type		N Series	Mechanical seal
	Type		S Series	SUS & Mechanical seal
	60 HZ		KW	0.37			0.55			0.75			1.50			2.20			5.50
	50 HZ		KW	0.37			0.55			0.75			1.50			2.20			5.50
Flow ↕ Pressure	60 HZ		LPM	50	33	25	100	67	50	167	133	117	233	200	168	233	200	168	550	450	250
	60 HZ		KG/CM²	1.6	2.0	2.2	1.5	1.9	2.0	1.3	1.8	2.0	2.5	2.7	2.8	3.8	4.0	4.3	1.5	3.2	5.0
	50 HZ		LPM	41	33	25	100	67	50	133	117	100	183	150	117	183	150	117	450	300	150
	50 HZ		KG/CM²	1.3	1.4	1.5	1.0	1.3	1.5	1.2	1.4	1.5	1.8	1.9	2.0	2.6	2.9	3.1	1.5	3.2	4.5
Cooling type				Direct cooling
Fluid piping			INCH	3/8*2			3/8*4			1			1-1/2			2			2
Cooling water			INCH	1/2			1/2			1/2			1			1			1
Cooling water			KG/CM²	Temp.＜100oC over 1.0 KG/CM² , Temp.≧100oC over 2.0 KG/CM²
Total load	60 HZ		KW	6.4			9.6			12.8			21.5			32.2			65.5
Total load	50 HZ		KW	6.4			9.6			12.8			21.5			32.2			65.5
Dimension (WDH)			CM	357768			357768			357768			4811080			4811080			60131123
D+ (With Pipeline)			CM	94			103			103			135			145			166
Approx. weight			KG	68			80			88			150			165			300
Options				Teflon hose Multiple inlet & outlet joints
Remarks				The piping of S series is SUS type. We reserve the right to change specifications without prior notice.

Model				KWTC-0506SH	KWTC-1009SH	KWTC-2012SH	KWTC-1009SHI	KWTC-2012SHI
Fluid				Water
Max. temperature		℃		140	140	140	160	180
Control method				PID Microprocessor controller ± 0.5℃ or upgrad to PLC program with 4.3 "color touch panel
Heater capacity		KW		6	9	12	9	12
Circulation pump	Type			Mechanical seal			SUS & Sealless
	60 HZ		KW	0.5	0.8	1.5	1.1	1.1
	50 HZ		KW	0.5	0.8	1.5	1.1	1.1
Flow ↕ Pressure	60 HZ	LPM		28	60	93	56	56
	60 HZ	KG/CM²		3.8			6.4	11.0
	50 HZ	LPM		22	44	74	37	37
	50 HZ	KG/CM²		3.8			6.4	11.0
Water filling pump	Type			Electromagnetic vibration
Water filling pump	KW			0.05	0.05	0.05	0.05	0.05
Flow ↕ Pressure	60/50 HZ	LPM		0.57			0.45	0.27
Flow ↕ Pressure	60/50 HZ	KG/CM²		3.8			6.4	11.0
Cooling type				Indirect cooling			Indirect cooling
Fluid piping		INCH		3/8*2	3/8*4	3/8*4	3/8*4	3/8*4
Cooling water		INCH		1/2	1/2	1/2	1/2	1/2
Cooling water		KG/CM²		Over 1.0 KG/CM²			Over 1.0 KG/CM²
Total load	60 HZ	KW		6.55	9.85	13.55	10.15	13.15
Total load	50 HZ	KW		6.55	9.85	13.55	10.15	13.15
Dimension (WDH)		CM		408276	408276	408276	408276	408276
D+ (With Pipeline)		CM		103	103	103	103	103
Approx. weight		KG		100	103	110	112	119
Options				Teflon hose Multiple inlet & outlet joints
Remarks				The piping of S series is SUS type. We reserve the right to change specifications without prior notice.
