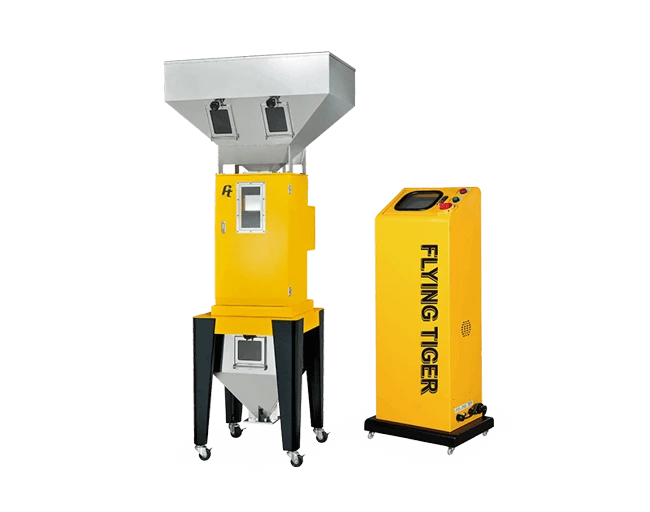

Gravimetric Dosing Blender

Flying Tiger gravimetric dosing blender (gravimetric blender) embodies innovations that increase the efficiency of production, feature improved design, high-performance components, and twin cone gates designed for perfectly dosing weight control.
Not only can Flying Tiger gravimetric blender have a precisely dosing amount but also equipped with a unique design batch blender to mix up to 8 materials.

Inquiry

FEATURE

Cone Gate

Multiple cone gate design for fast and accurate dosing design.Dosing stating can be expended up-to 8 stations.

Mixer

A small mixer to ensure complete mixing of the materials.

Controller

PLC control for easy programing for individual customer. Gravimetric control increases dosing accuracy to 99.9%.

Simultaneous coloring automatically for saving working hours and storage space.
The twin cones gates are designed to control the batch dosing weight of raw material exactly.
Vertical mixer design without residual material for material changeover easily.
Equipped with colorful human-machine screen and PLC controller, also it can built-in material conveying system for monitoring operational status easily.
All the dosing stations are equipped with material shortage alarm and they will stop to wait material supply automatically if any dosing station is lack of material.

Specifications

Download Catalog

Model			KGDB-100			KGDB-250
Model			2G	3G	4G	2G	3G	4G
No. of station			2	3	4	2	3	4
Capacity	KG/HR		120	110	100	290	270	250
Weight bin	KG		3			5
Dosingmethod	Two cone gates		2	3	4	2	3	4
Control type			7.0" Colorful human-machine & PLC control
Mixer	KW		0.4
Buffer tank	LITER		15			25
Compressed air	MM		ø5*8 MM, at 5 KG/CM²
Compressed air	LPM		60
Total load	KW		0.4
Dimension (WDH)	Machine	CM	6868155			6868168
Dimension (WDH)	Controller	CM	4634113			4634113
Approx. weight	Machine	CM	65			80
Approx. weight	Controller	CM	40			40
Options			1.Central material receiver 2.Central loader 3.Auto-cleaning vortex cyclone 4.Suction box with piping-purge device 5. Central material conveying system
Remarks			1.These specifications are for reference only. We reserve the right to change specifications without prior notice

Model			KGDB-600			KGDB-1000
Model			2G	3G	4G	2G	3G	4G
No. of station			2	3	4	2	3	4
Capacity	KG/HR		800	700	600	1500	1200	1100
Weight bin	KG		10			20
Dosingmethod	Two cone gates		2	3	4	2	3	4
Control type			7.0" Colorful human-machine & PLC control
Mixer	KW		0.4
Buffer tank	LITER		50			100
Compressed air	MM		ø5*8 MM, at 5 KG/CM²
Compressed air	LPM		60
Total load	KW		0.4
Dimension (WDH)	Machine	CM	7070197			116116270
Dimension (WDH)	Controller	CM	4634113			4634113
Approx. weight	Machine	CM	95			125
Approx. weight	Controller	CM	40			40
Options			1.Central material receiver 2.Central loader 3.Auto-cleaning vortex cyclone 4.Suction box with piping-purge device 5. Central material conveying system
Remarks			1.These specifications are for reference only. We reserve the right to change specifications without prior notice

Model			KGDB-2000
Model			2G	3G	4G
No. of station			2	3	4
Capacity	KG/HR		2600	2200	2100
Weight bin	KG		40
Dosingmethod	Two cone gates		2	3	4
Control type			7.0" Colorful human-machine & PLC control
Mixer	KW		0.4
Buffer tank	LITER		200
Compressed air	MM		ø5*8 MM, at 5 KG/CM²
Compressed air	LPM		60
Total load	KW		0.4
Dimension (WDH)	Machine	CM	116116288
Dimension (WDH)	Controller	CM	4634113
Approx. weight	Machine	CM	160
Approx. weight	Controller	CM	40
Options			1.Central material receiver 2.Central loader 3.Auto-cleaning vortex cyclone 4.Suction box with piping-purge device 5. Central material conveying system
Remarks			1.These specifications are for reference only. We reserve the right to change specifications without prior notice
