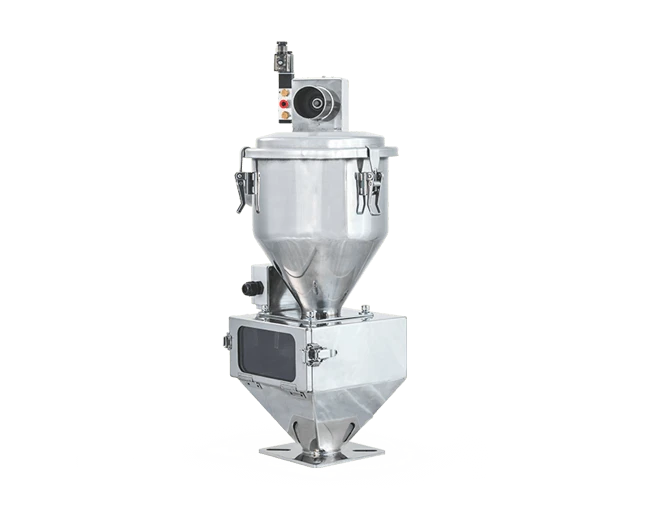

Central Material Receiver With Window Stand

Equipped with vacuum air valve & check valve flap for central material conveying system. Design large buffer capacity and front & back double windows to check materials condition.

Inquiry

FEATURE

Material

SUS304 material to avoid material contamination.

Vacuum Air Valve

Vacuum air valve is designed for multiple loading point with single loader.

Window Stand

Large window stand for easy operation and maintenance.

Construction is made of SUS304, prevent material pollution.
Material level sensor is equipped with magnetic switch and the wide-mouth flap design to ensure materials flow smoothly and can be conveyed stably.
Window stand has large buffer capacity and equipped with front and back double windows in order to facilitate observation of the status of materials.
Large-window design, material level and lack or full material are visible, easy maintenance and more to ensure that the dehumidifying effect of the closed circulation.
It equipped with the signal of ON/OFF switch, to stop the material supply immediately if you want to stop molding .
Equipped with vacuum air valve ＆ check valve flap for central material conveying system.

SPECIFICATIONS

Download Catalog

Model	Level sensor	Capacity (LITER)	Buffer capacity (LITER)	Approx. weight (KG)	Dimension (CM) WDH	Connection base (MM)
KCMR-6W	Magnetic switch	6	4.0	7.5	322261	120*120
KCMR-15W		15	9.4	11.5	423281	120*120
KCMR-30W		30	9.4	17	4332107	120*120
Remarks	1.We reserve the right to change specifications without prior notice.
