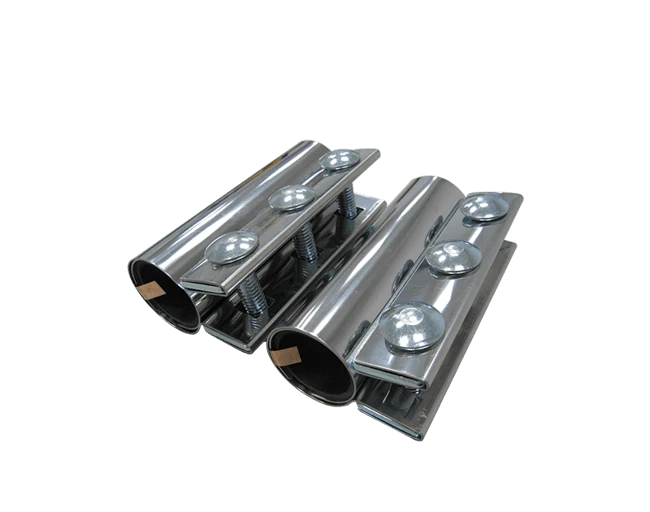

Stainless Compression Coupling
It is equipped with robber or silicon gasket strip of copper with anti-static, and stainless steel gasket with interlocking teeth. The stainless steel tubes can be connected by the coupling closely and safely.
It is equipped with robber or silicon gasket strip of copper with anti-static, and stainless steel gasket with interlocking teeth. The stainless steel tubes can be connected by the coupling closely and safely.
|
Model |
Inner diameter |
NO. of bolts (PCS) |
Coupling length (INCH) |
|
|---|---|---|---|---|
|
INCH |
MM |
|||
|
CC-15 |
1.5 |
38.1 |
3 |
6 |
|
CC-20 |
2 |
50.8 |
3 |
6 |
|
CC-25 |
2.5 |
63.5 |
3 |
6 |
|
CC-30 |
3 |
76.2 |
3 |
6 |
|
CC-40 |
4 |
101.6 |
3 |
6 |
|
CC-50 |
5 |
127.0 |
4 |
8 |
|
Remarks |
1.We reserve the right to change specifications without prior notice. |
|||
It's our pleasure to provide solution, please feel free to contact us.
