How Infrared Rotary Drum Technology Achieves 15 Minute rPET Crystallization While Increasing IV
- 2026.04.24
- Flying Tiger
In the global push for sustainability, rPET (recycled Polyethylene Terephthalate) has become the most vital material in the circular economy. However, transforming amorphous recycled flakes into high-quality, production-ready material is a significant technical challenge.
The bottleneck is often the crystallization process. Traditional hot-air systems are frequently too slow and inefficient for modern high-capacity lines. Flying Tiger KJ has redefined this process with our Infrared Rotary Dryer (IRD) technology, proving that rPET crystallization isn’t just a necessity—it is a value-added process.
Quick Summary: The Infrared Advantage
Traditional crystallization uses hot air (convection) and takes 4–6 hours. Flying Tiger’s Infrared Rotary Dryer uses short-wave radiation to heat the core of the flake instantly, completing crystallization in just 8–15 minutes. This technology prevents clumping, saves massive amounts of energy, and has been lab-verified to increase Intrinsic Viscosity (IV) by approximately 5%.
1. The Science of Light: Infrared Rotary Dryer Benefits
Traditional crystallization relies on convection—heating air to heat the surface of the flake. This is slow and often results in uneven thermal distribution. Flying Tiger KJ’s technology utilizes short-wave infrared radiation, which penetrates the core of the material instantly.
Key Infrared Rotary Dryer Benefits:
- Direct Core Heating: Infrared energy vibrates the molecules within the flake, generating heat from the inside out.
- Zero Clumping: The continuous rotation of the drum ensures that flakes remain in constant motion. This eliminates the sticking and "clumping" that often ruins batches in stationary hopper systems.
- Uniform Crystallization: Every flake receives the same exposure, ensuring a consistent crystalline structure across the entire batch.
2. Speed as a Metric of Success: 15-Minute PET Crystallization
In a traditional setup, drying rPET flakes and achieving full crystallization is a bottleneck, taking 4 to 6 hours. This massive lead time forces manufacturers to maintain large, energy-hungry buffer silos and prevents rapid production changes.
With the Flying Tiger KJ Infrared Rotary Dryer, we achieve faster PET crystallization, completing the cycle in a staggering 8 to 15 minutes.
- Rapid Startup: Go from a cold start to full production in minutes, not hours.
- Compact Footprint: Because the process is nearly 30 times faster, our equipment saves significant floor space while maintaining higher output than traditional towers.
3. Lab-Verified Quality: Increasing IV (Intrinsic Viscosity)
For high-end applications like bottle-to-bottle recycling, Intrinsic Viscosity (IV) is the ultimate measure of quality. Traditional dryers struggle with preventing IV drop because the material is exposed to heat for too many hours, leading to thermal degradation.
The Flying Tiger Advantage
Recent laboratory testing of material processed through our IRD showed that the IV did not just remain stable—it actually increased by approximately 5%.
By drastically reducing residence time (minutes vs. hours) and providing precise thermal control, our system removes moisture so effectively that it enhances the material's molecular integrity. This makes our technology the preferred choice for manufacturers who demand superior mechanical properties and food-grade safety in their recycled products.

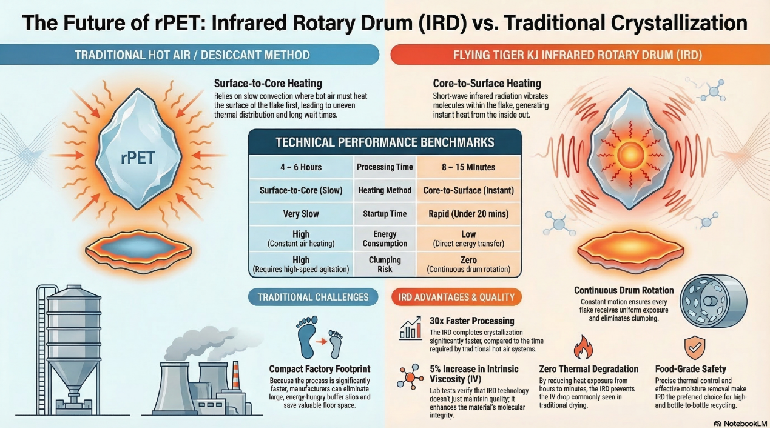

4. Technical Performance: IRD vs. Traditional Systems
| Performance Metric | Traditional Hot Air / Desiccant | Flying Tiger KJ Infrared (IRD) |
|---|---|---|
| Processing Time | 4 ~ 6 Hours | 8 ~ 15 Minutes |
| Heating Method | Surface-to-Core (Slow) | Core-to-Surface (Instant) |
| Startup Time | Very Slow | Rapid (Under 20 mins) |
| Energy Consumption | High (Constant air heating) | Low (Direct energy transfer) |
| IV Impact | Risk of IV Drop | Verified 5% IV Increase |
| Clumping Risk | High (Requires high-speed agitation) | Zero (Continuous drum rotation) |

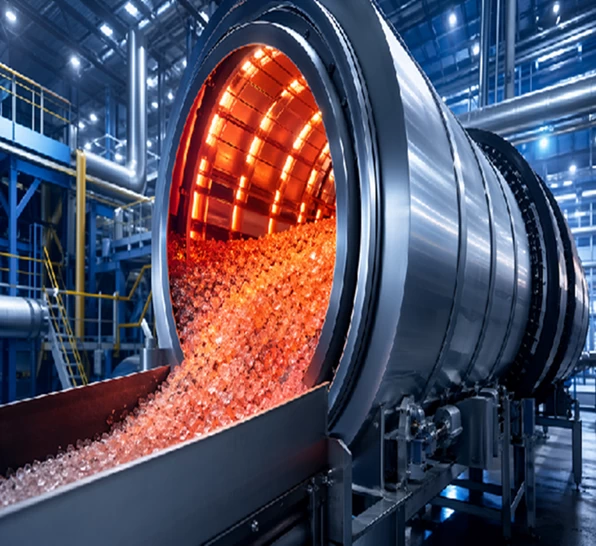

5. Built for Performance: The Flying Tiger Standard
A Flying Tiger KJ IRD system is a piece of bespoke industrial engineering. We understand that rPET flakes vary in density, thickness, and contamination levels, which is why our systems are fully customizable.
- Durable Engineering: Featuring heavy-duty stainless steel drums designed for 24/7 industrial environments.
- High Efficiency: Significant energy savings compared to traditional desiccant or hot-air hoppers.
- Customized Solutions: We tailor the drum size, infrared intensity, and rotation speed to meet your specific production requirements.
Revolutionize Your rPET Line
Don't let outdated heating technology be the weak link in your recycling process. From drying rPET flakes to achieving superior crystalline structures, Flying Tiger KJ provides the speed, precision, and durability required for the modern green factory.
